New Grain Vacs for sale
Meet the performance champ of grain vacs.
The versatility, flexibility, and
performance of Handlair® is unmatched in the grain vac
industry. Unlike most grain vacs which are limited to truck
loading, a Handlair can fill tall bins, silos, and flat
storage; transfer grain over long distances (several hundred
feet); and gently handle seed grains – all while using
lightweight 4″ to 6″ piping that makes set-up, operation,
and take-down a breeze.
Developed and built for years of service
in the heart of USA’s corn and soybean country, Handlair
continues to set performance standards for grain vacs.
If you’re looking for a better way to
move your grain and seed, you can count on Handlair.
|
Models 560 566
680
More seed companies own a Handlair than
all others put together.
When it comes to grain handling damage,
seed companies are a demanding group. They’re very fussy
about their seed handling equipment because seed handling
damage costs them money – big money. Handlair revolutionized
the seed industry by becoming the first pneumatic conveyor
to pass test after test for handling damage – proving itself
as the seed mover of choice for leading seed companies
everywhere.
Make sure you look under the hood.
The two primary components of all
push/pull pneumatic conveyors are the airlock and blower.
The quality and design of these two components significantly
impacts the performance, service life, and value of a grain
vac.
For example, Handlair’s heavy-duty cast
blow-through airlock with adjustable steel tips will keep
operating when others plug or under-perform. As each rotor
pocket containing grain passes in front of the blower’s
discharge, the pocket is cleaned from the pressurized air
passing directly through it – hence the term “blow-through
airlock”. This results in higher conveying efficiency and
better performance.
The Handlair positive displacement blower
with hardened gears, high-quality bearings and seals can
operate at pressures 25-50% higher, providing unequaled
conveying performance.
|

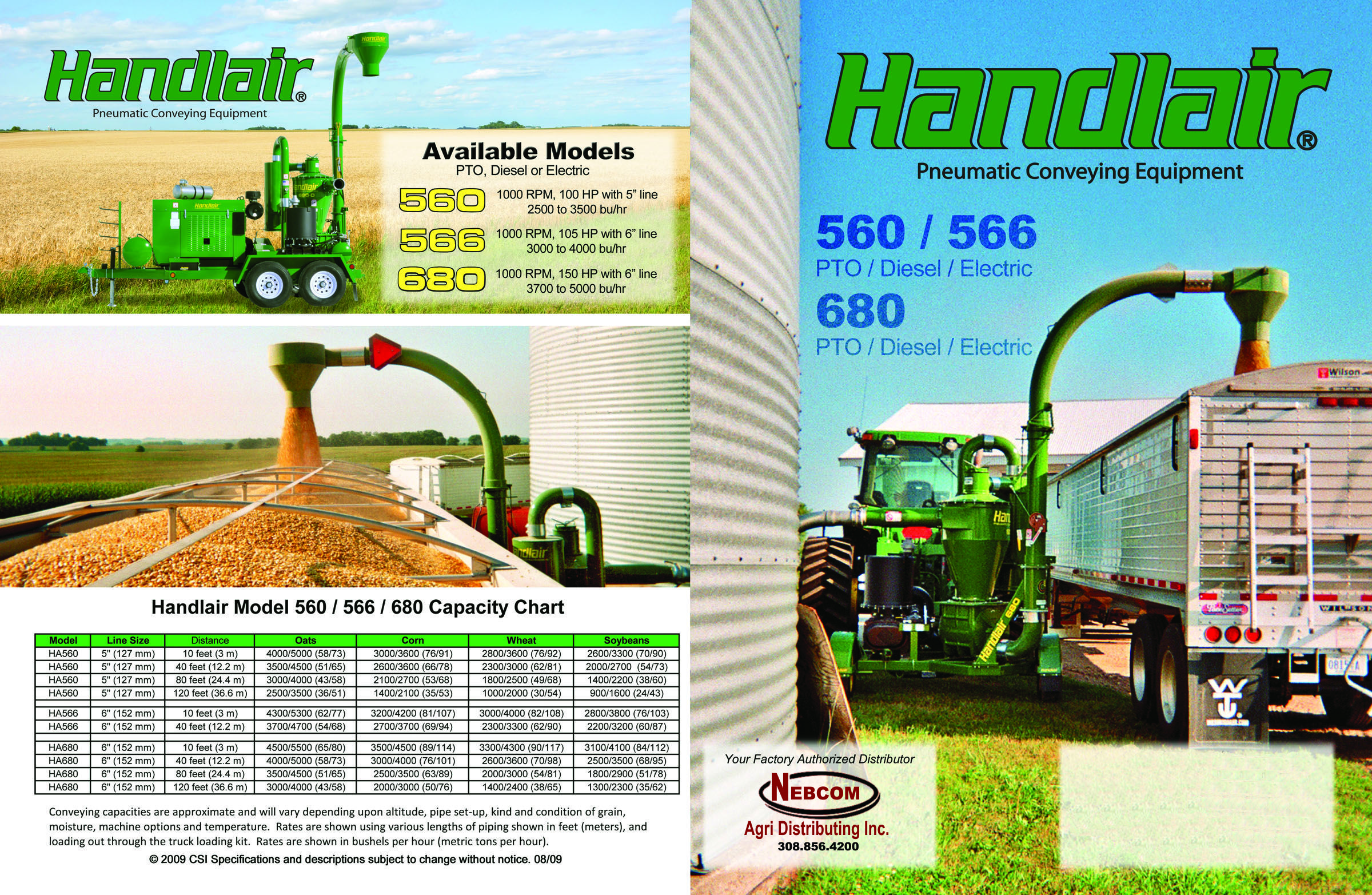

Model |
Capacity (max) |
HP |
Line Size |
|
560 |
3,500 bu/hr |
100 |
5″ (127 mm) |
|
566 |
4,000 bu/hr |
105 |
6″ (152 mm) |
|
680 |
5,700 bu/hr |
150 |
6″ (152 mm) |
|
